1. Product introduction

The high-quality copper and copper alloy wire blanks are plated with silver, and then the annealing and annealing are performed to produce silver-plated copper and copper alloy single-branched wires, and the single-strand wires can be stranded in the following. The product has excellent electrical conductivity, thermal conductivity, corrosion resistance and high temperature oxidation resistance.

The plating grade is divided into five grades of grade A, grade B, grade C, grade D and grade E according to the silver content of the silver-plated wire, and the corresponding silver contents are 1.25%, 2.50%, 4.00%, 6.00% and 10.00%, respectively.

Products are widely used in consumer electronics, medical, communications, aerospace, military wire and cable and other fields.

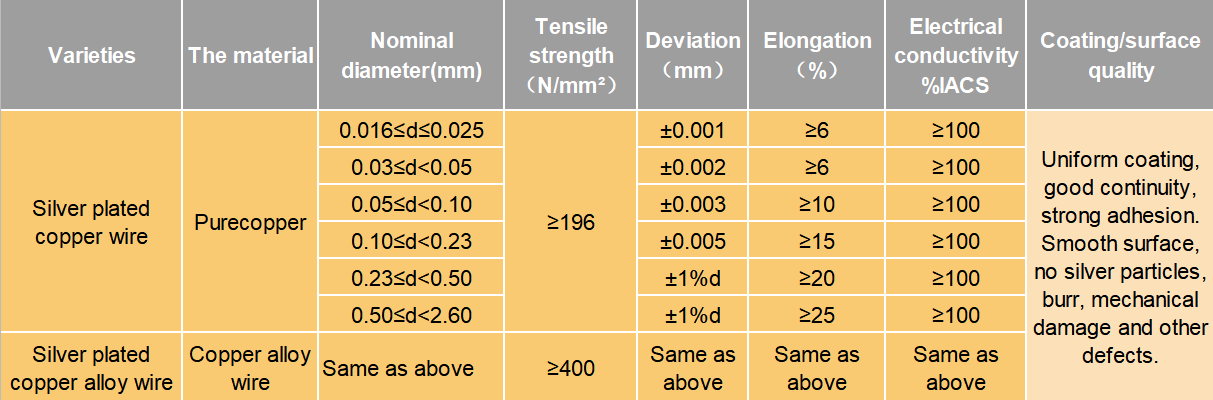

2. The main varieties specifications and performance
